About this product

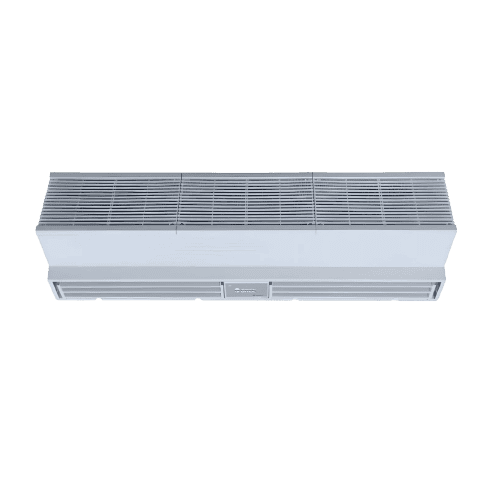

The air curtain, installed above doors or windows, uses a high-speed transverse current fan to create downward airflow. It insulates indoor spaces from external conditions, reducing air conditioning loss, and preventing insects and dust entry. Made of galvanized steel with a reliable motor, available in 0.9m & 1.2m sizes.
Suitable for:
Business Center
Restaurant & Bar
Supermarket
Features:
Energy Savings
By providing environmental separation between indoor and outdoor temperatures, recent studies have shown that by fitting an air curtain you can save up to 33% of your HVAC running costs. Pay back for some commercial applications can be as little as 21 weeks.
Improved Indoor Air Quality
Gree Air Curtains prevent dust, dirt and fumes from infiltrating and contaminating indoor areas.
Lower Construction Costs
With the use of Gree Air Curtains architects can design a building without vestibules, which can save on construction costs and provide more retail floor space.
Improved Working Conditions
Keeps out ambient air at door openings and re-circulates conditioned air from ceiling to floor for more comfortable working conditions.
FM-1.25-12-K
| POWER SUPPLY (Ph/V/Hz) | 220-230/50 |
| POWER INPUT | 140 |
| AIRFLOW VOLUME (m3/h) | 1650 |
| SOUND PRESSURE LEVEL (H/L) (dB(A)) | 61 |
| OUTLINE DIMENSIONS (WxHxD) (mm) | 1200x220x220 |
| NET/GROSS WEIGHT (kg) | 20/22 |
| SETTING HEIGHT (m) | 2.3~3 |
FM-1.25-9-K
| POWER SUPPLY (Ph/V/Hz) | 220-230/50 |
| POWER INPUT | 110 |
| AIRFLOW VOLUME (m3/h) | 1200 |
| SOUND PRESSURE LEVEL (H/L) (dB(A)) | 59 |
| OUTLINE DIMENSIONS (WxHxD) (mm) | 900x220x220 |
| NET/GROSS WEIGHT (kg) | 16/18 |
| SETTING HEIGHT (m) | 2.3~3 |
